Elegoo- Saturn 3 Ultra12K

694.40 including TAX

  • 10-inch 12K mono LCD
  • XY resolution of 19×24μm
  • Build volume of 218.88×122.88×260 mm³
  • Up to 150mm/h printing speed + ACF release liner film
  • Linux OS with 4Gb RAM
  • Wi-Fi transfer speeds of 6-10Mbps
  • 4-point leveling system





Description

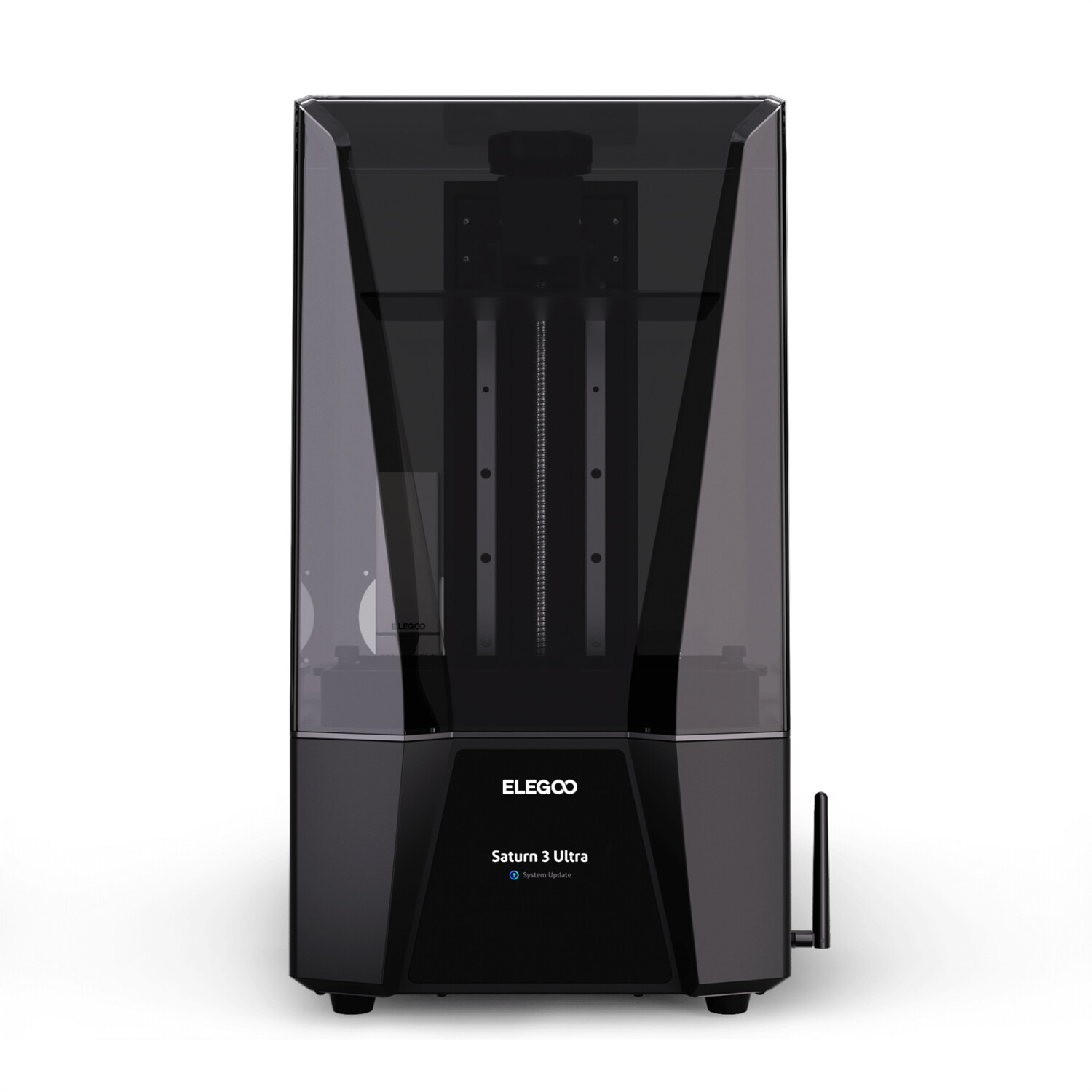

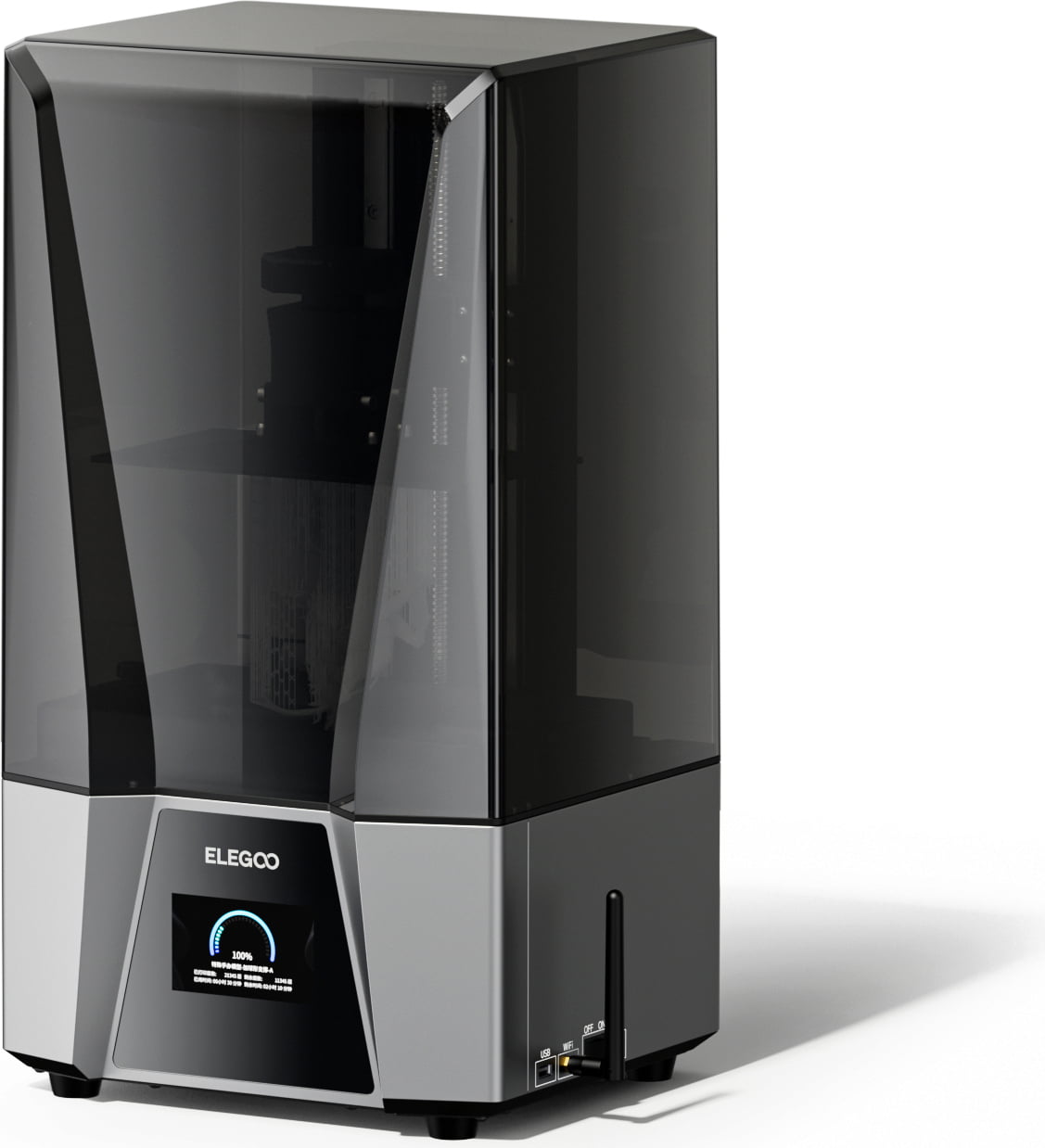

ELEGOO SATURN 3 ULTRA 12K LCD PRINTER

12K PRINT QUALITY

Experience the ultimate printing precision with the Saturn 3 Ultra which is equipped with a 10-inch 12K LCD monochrome screen with a resolution of 11520 x 5120 px and an XY resolution of 19 x 24 microns which produces extremely high quality prints. detailed with very sharp edges.

GREAT SPEED

The exceptional capabilities of the Saturn 3 Ultra and the new Elegoo ACF films offer the possibility of printing at 150 mm/h with Elegoo Fast resins. This 3 times higher speed will increase your production yield very significantly.

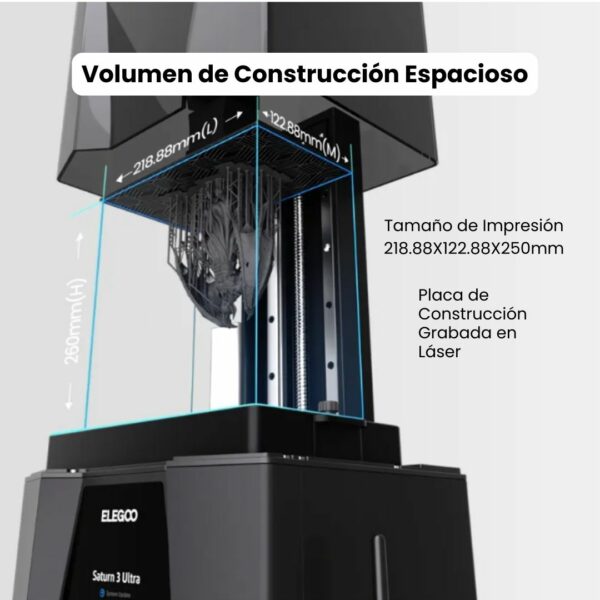

SPACIOUS PRINT VOLUME

Let your imagination run wild with the Saturn 3 Ultra’s comfortable printing dimensions of 218.88 x 122.88 x 260 mm .

PROTECTIVE GLASS

The monochrome screen of the Elegoo Saturn 3 Ultra is equipped with replaceable protective glass with a hardness of 9H. This extends the life of the screen, makes it easier to clean and prevents the ingress of resin or other liquids which could cause deterioration.

COB REFRACTIVE LIGHT SOURCE

The Elegoo Saturn 3 Ultra is equipped with enhanced COB refraction technology which provides uniform UV light across the entire print surface . Your models will thus have exceptional precision and a very smooth surface finish .

Saturn 3 Ultra Elegoo light source
Saturn 3 Ultra Z Axis

AN ULTRA-STABLE STRUCTURE

The Z axis linear rail guide and its ball screw structure ensure movement stability and high sharpness . The models therefore have fewer lamination defects and are more delicate, even at a speed of 150 mm/h.

LEVELING SYSTEM

The 4 leveling points with their hand screws are designed so that it is no longer necessary to redo the leveling each print and therefore save you time.

EXCELLENT MEMBERSHIP

With its laser-engraved surface , the printing plate offers a very high level of adhesion and facilitates the removal of parts once the print is completed.

EFFICIENT HEAT DISSIPATION

The large fan and highly heat-conducting copper tubes placed near the COB light source increase the cooling performance of the machine and extend its lifespan.

WIDE COMPATIBILITY

The GOO programming independently developed by the Elegoo brand is open source and does not restrict the use of your usual slicing software.

LINUX OPERATING SYSTEM

With the integrated 4G RAM, no more delays in loading files, the operating system ensures faster operations and more efficient resource management.

WIFI CONNECTION

Transfer your documents effortlessly and without cables thanks to Wi-Fi connectivity, which supports 2.4 and 5G networks, at a transfer speed of 6 to 10 Mbps. The detachable Wi-Fi antenna is very conveniently placed on the Z-axis side.

Saturn 3 Ultra ventilation
Saturn 3 Ultra Elegoo Air purifier

AIR PURIFICATION SOLUTIONS

The chemical components of certain resins cause the emission of unpleasant odors. To resolve this problem and relieve a large number of inconvenienced users, the Elegoo brand is developing a whole range of  air purifiers . The new version of the air purifier which plugs directly into the machine is equipped with protection for the activated carbon cartridges.

SUSTAINABLE DESIGN

The structure of the Saturn 3 Ultra is entirely made of metal in order to optimize the stability and durability of the machine and to support very sustained use. Its aesthetic appearance will also add a touch of elegance to your workspace.

ERGONOMIC TOUCH SCREEN

Navigate with ease on the high-definition 4-inch IPS touch screen which has a resolution of 800 x 480 px and a very ergonomic user interface in 12 languages, accessible for users of all levels.

FEATURES

Screen 10-inch 12K monochrome LCD
Technology MSLA 3D stereo lithography
Light source COB + 405 nm refractive light
Operational 4 inch touch screen
Slicer Voxeldance Tango and Chitubox
Connectivity USB and WiFi
XY resolution 19 x 0.024mm (11520 x 5120)
Z axis accuracy 0.01mm
Layer thickness 0.01 – 0.2mm
Maximum printing speed 150mm/h
Food 100-240V 50/60Hz 24V 7.5A
Printer dimensions 305.9(L) x 273(w) x 562.5(h) mm
Print volume 218.88 x 122.88 x 260mm
Weight 12kg
UI languages Chinese, English, Japanese, German, Korean, French, Russian, Italian, Spanish, Turkish, Portuguese

MANY FIELDS OF APPLICATION

✔ R&D   ✔ Dentistry   ✔ Education
✔ Model making   ✔ Jewelry   ✔ Design

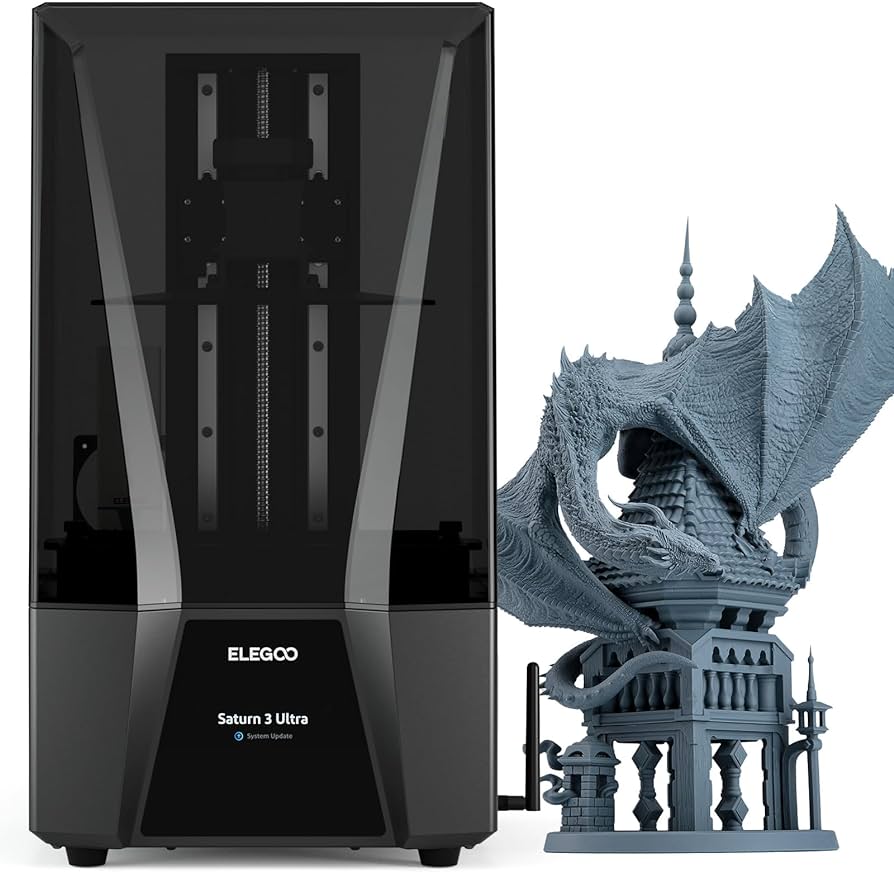

Saturn 3 Ultra print quality
